Package integrity leak test methods offered by CCIT such as Seal-Scan utilize non-contact Airborne Ultrasonic technology for seal integrity testing and seal quality analysis of pouches and flexible packaging. The method is applicable to pharmaceutical as well as medical device packaging.

Seal Quality Testing and Seal Analysis using Seal-Scan Technology

Seal-Scan® is a non-destructive offline inspection and analysis technique for pouch seals using Airborne Ultrasonic technology (ABUS). Seal-Scan® offers advanced digital imaging software tools for process control, including in-depth seal quality inspection. Seal-Scan system uses the non-destructive ASTM Test Method F3004-13 for "Evaluation of Seal Quality and Integrity Using Airborne Ultrasound Technology." This test method was approved using PTI's ABUS technology. Seal-Scan® is a deterministic, quantitative, high-resolution technology for inspecting pouch seals for defects and ensuring seal integrity.

Seal-Scan has two scanning modes:

• Linear Scan (L-Scan) to simulate online defect identification (line graph)
• C-Scan for detailed seal analysis, resulting in pixel-by-pixel seal evaluation (Opto-Acoustic image)

Technology Overview

The pouch seal or packaging material is scanned between two focused ultrasonic sensors. Ultrasonic waves travel through single or several layers of bonded materials. The reflection of sound waves caused by ultrasonic transmission via different materials reduces/eliminates signal intensity. The signal level that passes through the seal is a function of the seal's quality. Defects of various forms, such as leaking and non-leaking, process-related and random, can be detected. Seal-Scan® can provide Opto-Acoustic images as well as thorough statistical analysis using one of two scan modes (L-Scan and C-Scan).

An L-Scan is a single linear scan along the seal's X-axis that generates a line graph of seal integrity and replicates real-time inspection. C-Scan generates a series of scans (along the X and Y-axis of the seal region), that offers a high-resolution ultrasonic image of the seal structure. This technology, via the Seal-Sensor, can be integrated into a pouch production process for 100% online seal defect detection.

Benefits of Seal-Scan Technology

• Deterministic inspection approach yielding quantitative results.
• Works with any material and combination, independent of color, transparency, print, surface polish, or porosity.
• Produces a high-resolution Opto-Acoustic seal image.
• Characterizes the overall quality and consistency of the seal.

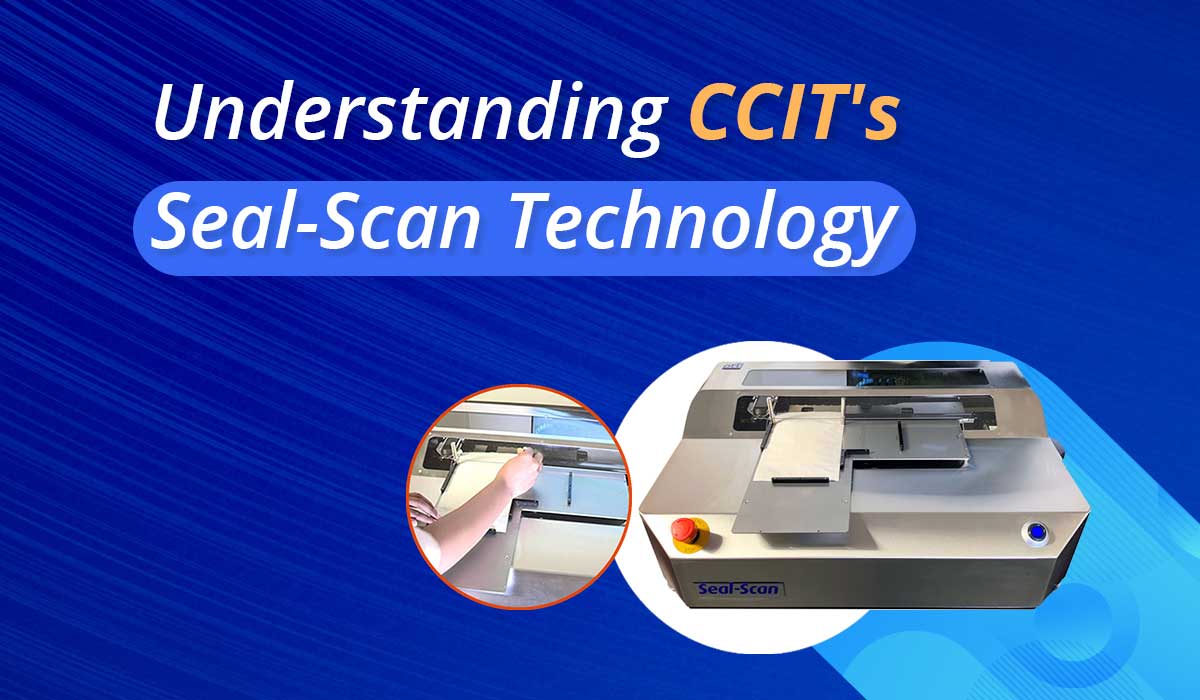

Seal-Scan® is a semi-automatic inspection system with an x-y drive that is used to identify seal defects, characterize seals, and analyze materials. This approach is non-invasive, non-destructive, and does not need any sample preparation. The ability of PTI to adapt this technology to diverse production restrictions and conditions makes it an effective solution for flexible packaging systems.
