Blister packs are popular packaging options for pharmaceuticals and consumer goods. A wide range of pharmaceutical products are packed in blister packs, ranging from capsules and tablets to high-risk hormone-based drugs and steroidal treatments. Commonly made of thermoformed plastic, these are quite useful in guarding products against external factors like heat, moisture and humidity.

However, concerns over integrity of blister packaging have increased over the years. Even a minute breach in the packaging can result in compromised package integrity. Hence, pharmaceutical manufacturers concerned about quality and shelf life of their products make Container Closure Integrity testing a crucial part of their manufacturing process. There are several methods available to test blister packs, and each has its own merits and demerits. For instance, the most common method to test blister packs remain dye ingress. However, this method is subjective, probabilistic and lacked accuracy in test results. This encouraged manufacturers to use non-destructive CCI test methods, that were accurate and produced quantitative results with measurable result data.

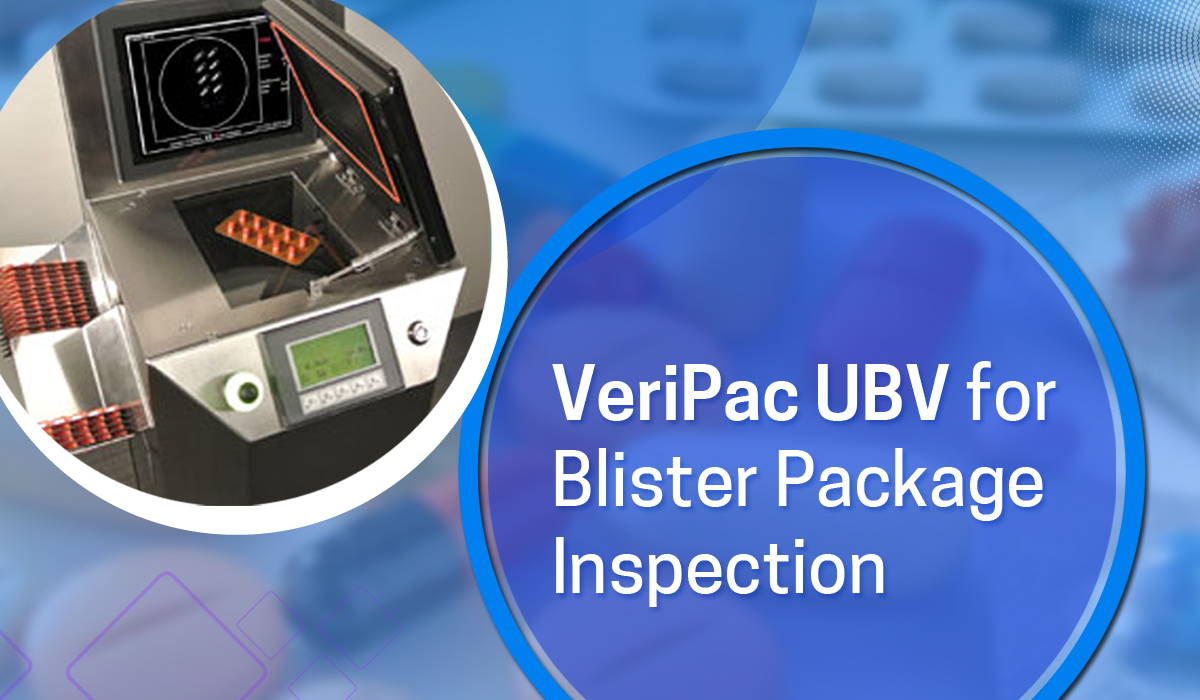

Blister Package Inspection with VeriPac UBV Technology

The VeriPac UBV Leak Detection System is a deterministic, non-destructive technology designed specifically for multi-cavity blister packs. The VeriPac UBV utilizes volumetric imaging under vacuum to detect the presence and location of leaks. It is a rapid test requiring no changeover or sample preparation. Operators simply input the number of blister cavities, place the blister pack on the inspection plate and press the START button. Within seconds, the operator sees a definitive pass/fail result, along with a volumetric measurement reading. The location of the defective cavity is presented to the operator with an image of the tested package. The intuitive and simple method makes it a practical solution giving rapid feedback to production line operators.

The UBV technology can provide rapid detection of defects as small as 10 microns with a fast test time, averaging 10-30 seconds depending on blister cavity volume. Test system requires no tools or test parameter changes for different blister formats. This technology is particularly advantageous for small to tiny blister cavities that are notoriously difficult to detect with a standard Vacuum Decay technology due to the very low headspace.

Technology Overview

Under this method, the sample is first placed inside the hinged test chamber. After pressing the start button, vacuum is pulled to a defined level. The blisters expand under vacuum, driving air out of the blister through any leaks present. If there is a leak in the blister, the air escapes into the chamber leaving a collapsed blister package. During the dynamic vacuum test sequence, a volumetric measurement reading is taken which determines which blister cavities are defective.

Benefits of VeriPac UBV Technology

• Non-destructive technology
• Accurate and repeatable results
• Pass/fail results backed by quantitative test data
• Completely tool-less
• No changeover to test different blister formats
• Identifies which cavity is defective
• Eliminates destructive, subjective testing methods
